Keplerian Telescope
A refracting telescope using a positive (converging) eyepiece lens rather than Galileo's original negative eyepiece, first described by Johannes Kepler in 1611. The positive eyepiece forms a real intermediate image and, critically, an accessible external exit pupil, making it the configuration underlying nearly every modern refracting telescope, monocular, and binocular in use today.
Eyepiece type
Positive (converging) lens
Intermediate image
Real, forms inside the tube
Raw image orientation
Inverted
Exit pupil
Real, external, accessible
Overview
- Uses a positive (convex, converging) objective lens followed by a second positive (convex, converging) lens as the eyepiece, with the objective's real image forming inside the tube between the two lenses before the eyepiece re-images it out to the eye
- Because the objective forms a real, inverted intermediate image partway down the tube, a Keplerian telescope's raw output is upside-down and left-right reversed — which is exactly why every terrestrial telescope, monocular, and binocular needs an erecting prism or lens-relay stage added after the eyepiece stage to flip the image back upright for practical land-viewing use
- The defining practical advantage over the Galilean configuration is that the positive eyepiece forms a real, external exit pupil — a small, well-defined disk of light exiting the eyepiece a short distance behind it, exactly where the observer's eye pupil is positioned — which permits a much wider apparent field of view and comfortable extended eye relief compared to a Galilean design
- Because the intermediate image is real and physically accessible inside the tube, a crosshair, reticle, or focal-plane measuring scale can be placed exactly at that image plane — a capability the Galilean configuration's virtual-only image doesn't allow, making the Keplerian layout essential wherever precise aiming or measurement matters
- This is the foundational configuration underlying essentially all modern astronomical telescopes, terrestrial telescopes, monoculars, spotting scopes, and binoculars — the "afocal or focal refractor" umbrella described in this reference's category overview is, in practice, built almost entirely on Keplerian optics, with the achromatic/apochromatic distinction describing how the objective itself is color-corrected within that same Keplerian framework
Key Features
Real, accessible exit pupil
Enables comfortable eye relief and a wide apparent field of view — the core advantage that made the Keplerian layout the standard for essentially all serious optical instruments.
Accessible intermediate image plane
A real image forms inside the tube where a reticle, crosshair, or measuring scale can be inserted — required for rifle scopes, surveying instruments, and any application needing precise aim or measurement.
Requires erection for terrestrial use
The raw inverted image means every terrestrial application built on Keplerian optics needs an added erecting prism or relay lens stage — the very system described throughout this reference's Terrestrial Telescope pages.
Design and Construction
Basic two-lens layout
- Positive objective forms a real, inverted, reduced (for astronomical use) or matched-scale intermediate image at its focal plane
- Positive eyepiece, placed so its own focal point coincides with that intermediate image plane, re-images the light out to a real exit pupil for the eye
Magnification & field relationship
- Magnification equals objective focal length divided by eyepiece focal length — the same governing relationship used throughout every astronomical telescope, monocular, and binocular in this reference
- Wider apparent field of view achievable than a Galilean design at equivalent magnification, since the eyepiece's positive power isn't constrained by the negative-lens limitations of the Galilean layout
Applications

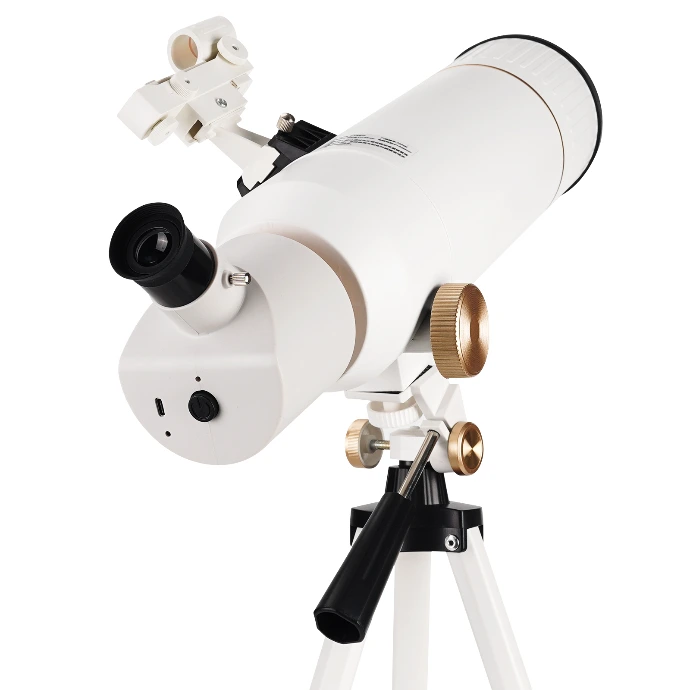

Astronomical Telescopes
Refractor objectives (achromatic & apochromatic)
The foundational configuration behind every refracting astronomical telescope described elsewhere in this reference.
Terrestrial Instruments
Monoculars, spotting scopes & binoculars
Used with an added erecting stage in every terrestrial telescope, monocular, spotting scope, and binocular channel in this reference.
Precision Optics
Rifle scopes, surveying & measuring instruments
The accessible real intermediate image plane makes Keplerian optics essential wherever a reticle or measurement graticule is required.
Why the Keplerian Layout Dominates Modern Optics
Wide, comfortable field of view
The real external exit pupil allows far more generous eye relief and apparent field than a Galilean design permits.
Supports reticles & measurement
A real accessible intermediate image plane is required for any application needing a crosshair or precision scale.
Frequently asked questions
Here are some common questions about achromatic lens.
The Galilean design's naturally upright image comes at the cost of a virtual, inaccessible exit pupil, which severely restricts both the apparent field of view and the eye relief achievable at any meaningful magnification — problems that get worse, not better, as magnification increases. The Keplerian design's inversion is a comparatively minor, one-time fix: a single erecting prism or lens-relay stage solves it permanently and compactly, while unlocking the much wider field of view, comfortable eye relief, and reticle-compatible intermediate image that make the Keplerian layout practical at the higher magnifications essentially all modern telescopes, monoculars, and binoculars use — which is why the "cost" of adding an erector was judged well worth paying once erecting prism technology matured.
No. Achromatic lenses are primarily optimized to eliminate chromatic aberration and also reduce spherical aberration and coma compared to singlets. Higher-order aberrations such as astigmatism, field curvature, or distortion may still be present and typically require additional lens elements or more complex system designs to address fully.
Yes — every refracting design covered elsewhere in this reference (achromatic and apochromatic refractors, terrestrial telescopes, monoculars, spotting scopes, and each binocular channel) is built on the Keplerian two-positive-lens layout, since it's what enables the wide field, comfortable eye relief, and (for terrestrial instruments) erecting-prism compatibility those products require. The Galilean configuration, by contrast, survives today mainly in a narrow set of specialty low-magnification applications.
