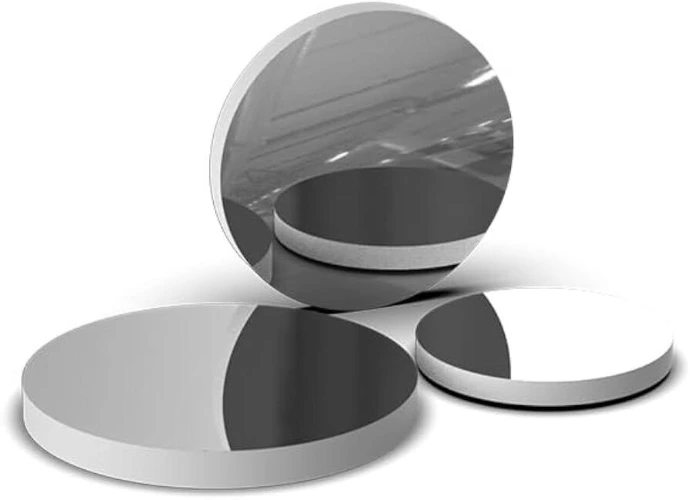

Flat (Plane) Mirror
A mirror with a perfectly flat reflective surface — redirecting light without introducing focusing, defocusing, or any change to the wavefront shape. The fundamental beam-steering element of every optical system, used to fold paths, redirect beams, and build precision reference flats for interferometry.
Surface form
Flat (infinite radius)
Optical power
None (afocal)
Function
Beam steering / folding
Flatness range
λ/2 to λ/20
Overview
- The reflective surface has zero curvature — an idealized infinite radius of curvature — so it introduces no focusing or defocusing power to a reflected beam
- Used universally to fold optical paths, redirect beams at any angle, and route light around mechanical obstructions without altering beam divergence or wavefront shape
- Surface flatness is specified in fractions of a wavelength (λ) — the dominant performance metric distinguishing commercial-grade from precision and reference-grade flats
- An image reflected by a single flat mirror is laterally inverted (mirror image) but otherwise undistorted — preserving magnification, sharpness, and color fidelity
- Available with metallic coatings (broadband, lower reflectance) or dielectric coatings (narrowband, near-perfect reflectance) depending on the wavelength range and application
- The reference-grade flat mirror (optical flat) is itself a precision metrology tool used to test the flatness of other optical surfaces by interferometric comparison
Key Features
Zero optical power
A perfectly flat surface neither converges nor diverges a reflected beam — collimated light remains collimated, and a beam's divergence angle and wavefront curvature are completely unchanged by reflection. This makes the flat mirror the only purely "neutral" beam-redirecting element in optics.
Optical path folding
Used extensively to fold long optical paths into compact instrument housings — periscopes, laser cavities, spectrometer optical benches, and telescope tube designs all use flat mirrors at 45° or other angles to route the beam through 90°, 180°, or any arbitrary angle while preserving beam quality.
Reference-grade flatness
Precision optical flats are manufactured to surface accuracies of λ/10 to λ/20 (peak-to-valley at 633 nm) — among the flattest man-made surfaces achievable. These reference flats are used in Fizeau interferometers to test the flatness of other optical components by direct interference comparison.
Image-preserving reflection
A flat mirror produces a perfect, undistorted, same-size virtual image with no magnification change — the only optical element that reflects an image with zero distortion regardless of object distance, making it the standard reference for image quality comparison in optical testing.
Design and Construction
Surface quality grades
Commercial & precision grades
- Commercial grade: λ/2 to λ/4 flatness; general beam steering and imaging applications
- Precision grade: λ/8 to λ/10; laser cavity and interferometer applications
- Reference grade (optical flat): λ/10 to λ/20; metrology and interferometric testing standards
Surface quality (scratch-dig)
- Standard: 60-40 scratch-dig — general purpose
- Precision: 20-10 — laser and imaging applications
- Laser grade: 10-5 — high-power and scientific laser systems
Substrate options
Common substrates
- BK7 / float glass — standard commercial mirrors; cost-effective
- Fused silica — low thermal expansion; precision and laser applications
- Zerodur / ULE glass — near-zero CTE; reference flats and space telescope mirrors
- Aluminum / metal substrates — lightweight; rapid prototyping and IR systems
Mounting considerations
- First-surface (front-surface) mirrors avoid the ghost image and absorption of back-surface household mirrors
- Thickness selection balances flatness stability against weight and thermal response
Optical Materials
Coating types
Metallic coatings
- Protected aluminum — broadband 250 nm–20 µm; 85–95% reflectance; most economical
- Protected silver — 450 nm–20 µm; 95–99% reflectance; highest broadband performance in visible-IR
- Protected gold — 800 nm–20 µm; 96–99% reflectance; standard for IR and CO₂ laser systems
- Bare/unprotected gold — for vacuum or controlled-atmosphere use; highest IR reflectance but no scratch protection
Dielectric coatings
- Multilayer dielectric stacks — >99% reflectance over a defined band; used where maximum efficiency at specific wavelengths is required
Substrate materials
Glass & glass-ceramic
- N-BK7 — standard visible/NIR substrate; good homogeneity at moderate cost
- UV Fused Silica — UV through NIR; low thermal expansion; laser-grade flats
- Zerodur / ULE — near-zero coefficient of thermal expansion; used in space telescopes and metrology reference flats where dimensional stability across temperature is critical
Wavelength Options
UV
- 250–400 nm
- UV-enhanced Al
- >90% reflectance
Visible
- 400–700 nm
- Protected Al/Ag
- 85–99% reflectance
NIR
- 700–2000 nm
- Protected Ag
- >97% reflectance
MWIR/LWIR
- 2–20 µm
- Protected Au
- >96% reflectance
Applications
Laser Systems
Beam steering & folding
The most common optical element in any laser setup — redirecting beams at any angle to route light around table obstructions, fold long path lengths into compact enclosures, and align beams between separate optical sub-systems.
Metrology
Interferometer reference flats
Reference-grade flat mirrors serve as the comparison standard in Fizeau and Twyman-Green interferometers — testing the surface flatness of other optical components by direct interference fringe analysis against the known-flat reference.
Imaging
Periscopes & relay systems
Used in periscopes, image relay systems, and folded telescope designs to redirect the optical path without introducing aberration — preserving full image quality while routing the beam around mechanical structures.
Astronomy
Coelostats & siderostats
Large flat mirrors track and redirect sunlight or starlight into fixed telescope optics — coelostat and siderostat systems use precision flats to maintain a stationary observation beam as celestial objects move across the sky.
Industrial
Laser material processing
High-power laser cutting, welding, and marking systems use protected silver or gold flat mirrors to route kilowatt-level laser beams from the source to the workpiece with minimal absorption loss and high damage threshold.
Consumer
Projection & display systems
Used in projectors, heads-up displays, and rear-projection televisions to fold the optical path into a compact housing — enabling short-throw projection designs that would otherwise require impractically long enclosures.
Why choose Flat Mirrors
Zero wavefront distortion
The only optical element that redirects a beam with absolutely no change to wavefront curvature, divergence, or focus — a true "neutral" beam-steering component.
Reference-grade precision available
λ/20 flatness optical flats provide the most accurate flat reference surfaces achievable — the foundation of interferometric metrology worldwide.
Broadest coating range
Available with every standard metallic and dielectric coating — covering UV through far-IR with the widest material selection of any mirror geometry.
Universal compatibility
The simplest, most affordable, and most widely available mirror type — stocked by every optics supplier in every size, substrate, and coating combination.
Frequently asked questions
Here are some common questions about achromatic lens.
Surface flatness specifications describe the peak-to-valley deviation of the mirror surface from a perfect plane, measured in fractions of a reference wavelength (typically 633 nm HeNe laser light). A λ/10 flat mirror has surface irregularities no greater than 63.3 nm peak-to-valley across the specified clear aperture. For comparison, a human hair is roughly 70,000 nm thick — illustrating just how flat these surfaces are. Tighter flatness specifications (smaller fractions) directly translate to lower wavefront distortion when the mirror is used in interferometric or laser cavity applications.
A household mirror has its reflective coating on the back of the glass substrate — light passes through the glass, reflects off the back coating, and passes through the glass again. This produces a faint secondary "ghost" reflection from the front glass-air surface and introduces chromatic dispersion and absorption from the double glass pass. A first-surface mirror has its reflective coating on the front surface — light reflects immediately with no glass pass, eliminating ghosting, absorption, and dispersion. All precision optical applications require first-surface mirrors.
Protected aluminum: broadest spectral range (UV through far-IR), most economical, slightly lower reflectance (85–95%) — use for general-purpose and broadband applications. Protected silver: highest reflectance in visible and NIR (95–99%), but does not extend into deep UV — use for laser systems and high-efficiency visible/NIR applications where aluminum's lower reflectance is unacceptable. Protected gold: highest reflectance in NIR through far-IR (96–99%), but absorbs strongly in the visible (appears yellow/gold) — use exclusively for IR systems, CO₂ laser beam delivery, and thermal imaging optics.
